Litter-Robot 4: Red light bar with partial white flashing (Globe position)

IMPORTANT

1. Make sure your unit is plugged in.
2. Make sure your unit is connected and online.
3. Make sure your firmware is up-to-date. If the app does not give you the option to update, you have the latest version.

Preparation

Litter-Robot utilizes position sensors to determine the position of the globe during rotation. Additionally, the speed of the globe is calculated to ensure continued operation as a backup to the position sensors.

If your unit displays a red light bar with partial white flashing, this indicates that the unit did not detect the globe position during its previous cycle.

You will also receive a notification on your phone if you use the Whisker app.

The unit may have missed a position or did not reach the desired position within a calculated amount of time. However, the unit will continue to function in automatic mode even with this error.

1. Check that your unit is not overfilled with litter. If the litter is filled above the line, please remove some litter until it's just below the raised MAX fill line before proceeding.

2. If you recently added litter, the globe could have slowed down enough to trigger this fault.  If the issue has cleared after an additional cycle, there should be no issue with your unit.
3. Now, let's run a test cycle. Short press the Reset button, then short press the Cycle button to run a Clean cycle.

4. After your Litter-Robot cycles, it should return to the Home position, displaying a blue light bar.

Successful: If your unit displays a blue light bar, you've been successful.

Unsuccessful: If you are still seeing a red light bar with partial white flashing, please continue.

Troubleshooting

We will be looking for anything that could slow down the globe rotation or cause the sensor not to detect the globe position, which could have caused the fault you are experiencing.

Let’s check for any additional debris or foreign objects that may interfere with the sensors during the cycle. First, we will remove the bonnet and globe to look for any issues.

1. Make sure the unit is in the Home position.
2. Press the Power button to turn the unit off, then unplug the unit from the wall.


Removing the bonnet

1. To open the bonnet, press and hold the latches on both sides of the bonnet, then lift and rotate the bonnet to its open position.

2. Set the bonnet aside.
3. If you have any accessories installed such as the fence, shield, or LitterHopper, remove them.


Note: Typically need to remove the bonnet completely only during deep cleaning or bonnet replacement.

Removing the globe

1. To remove the globe, grab the black handle located on top of the globe, lift the globe out of the base, and set it aside.


Inspecting the globe

Let’s inspect the globe for any potential issues. There are magnets located in the gear track, these help identify the positions of the globe during rotation.

If you have disassembled the globe recently, please note that the orientation of the magnets is critical for proper operation.

1. Inspect the globe for damage such as deep scratches, separating seams, or cracked plastic. Also check that the gear track is not loose. If your robot is out of warranty, you may purchase a replacement globe at Litter-Robot.com.

2. Inspect the seal strips on the inside of the globe and ensure they are not peeling up or have any debris, such as cat fur, stuck in them. If your robot is out of warranty, you may purchase replacement seal strips at Litter-Robot.com.

3. Make sure the carbon filter cover is fully seated and has not popped out during shipping or cleaning.


Inspecting the base

Let’s inspect the base for any potential obstructions.

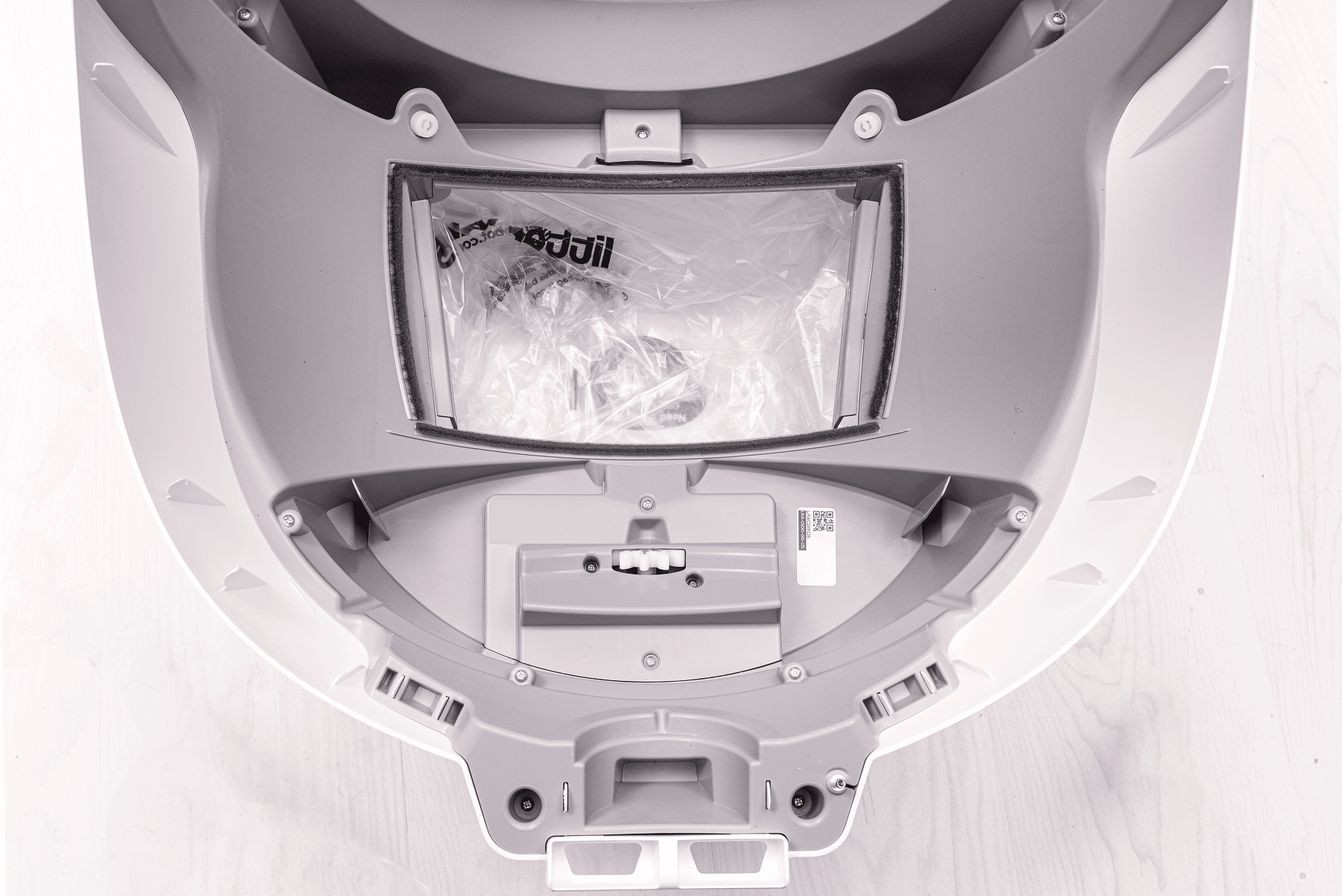

1. Inspect the exterior, top portion of the base where the globe usually rests.

2. Ensure the seal strips around the dump port are not peeling up or accumulating litter. This could impact the rotation of the globe. If your robot is out of warranty, you may purchase replacement seal strips at Litter-Robot.com.

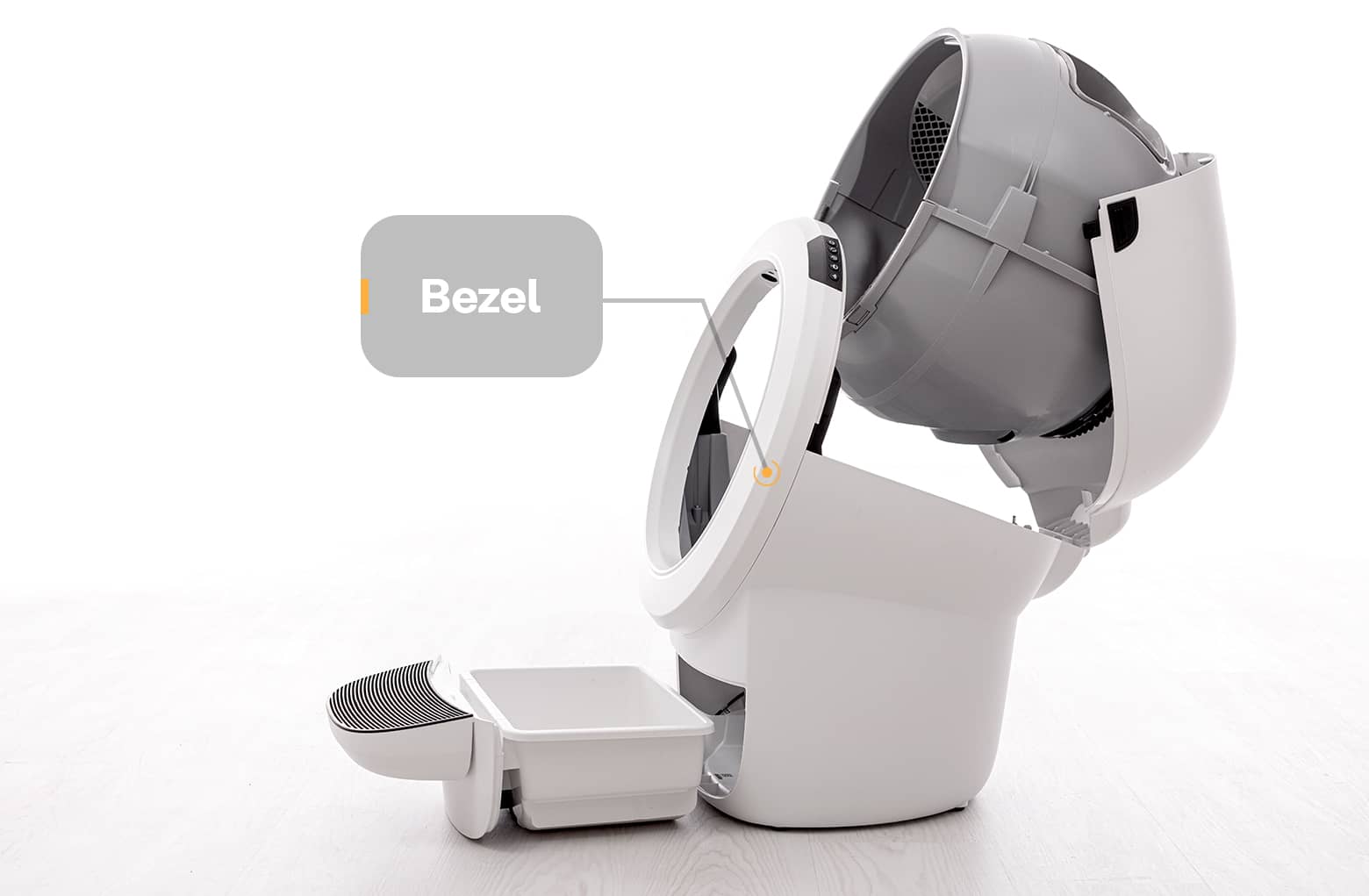

3. Inspect the seal strips inside the bezel and ensure they are not peeling up, which can impact rotation. If your robot is out of warranty, you may purchase replacement seal strips at Litter-Robot.com.

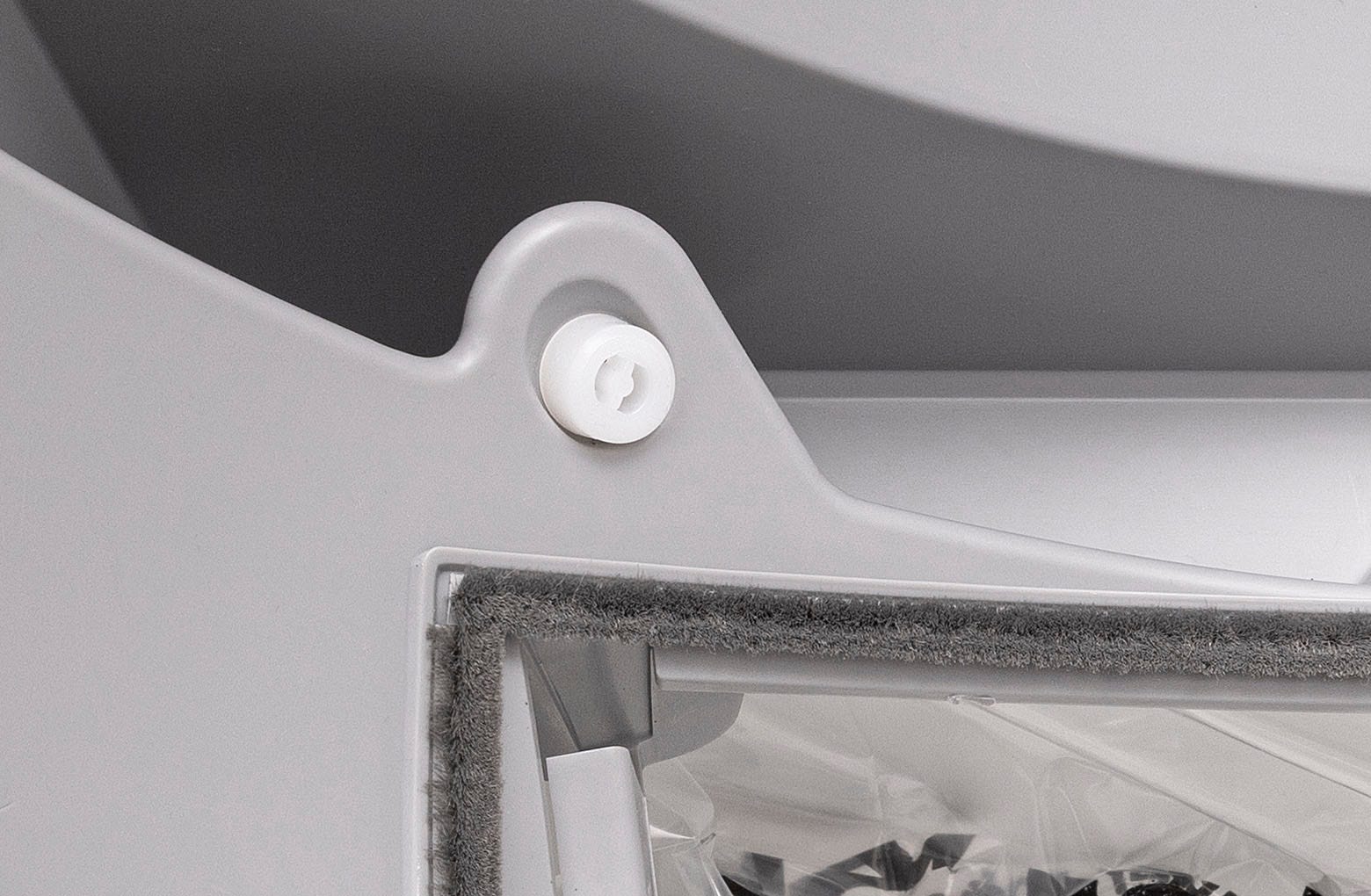

4. Ensure the two (2) globe glider buttons are attached. If your robot is out of warranty, you may purchase replacement glider buttons at Litter-Robot.com.

5. Clean any excess litter that you see that may have missed the Dump Port.

Inspecting the motor

Let’s inspect the motor area for possible obstructions.

1. Inspect the motor cover to ensure it is fully seated and screwed down tightly.
2. Ensure the gear on the motor is not loose and does not rotate freely. If the gear is loose you will need a new motor assembly.

Reassembly

Now that we’ve checked for any obstructions, let’s re-install the globe and bonnet and check for proper operation of the unit.

Installing the globe

1. To install the globe, hold the globe by the black handle and set it into the base.

2. When installing the globe, keep the globe handle and waste port oriented toward the top to ensure the globe is close to the Home position.
3. The large black gear on the rear of the globe should easily engage with the smaller white drive gear in the base.

Installing the bonnet

1. If the bonnet was completely removed, rotate the bonnet upward and align the hinge feature of the bonnet at the back of the base.

2. To close the bonnet, rotate the bonnet downward over the globe, applying slight inward pressure at the latches to align the bonnet within the base. You should hear the latches snap into place.
3. Check to make sure the center tab at the top of the bonnet is secured in its pocket by pushing down on the bonnet at the tab location.


Final steps

1. Reinstall any accessories.

2. Plug the unit in and power it on.

3. Litter-Robot will display a solid blue light indicating it is ready for use.

Successful: If your unit returned home and displays a blue light bar, you've been successful. Your previous cycle was likely just a bit slower than the expected cycle time.

Unsuccessful: If you are still seeing a red light bar with partial white flashing after resetting at the Home position, there's likely an issue with your Litter-Robot.

Issue not resolved?

To repair your Litter-Robot, you will need a globe, motor, or base depending on the issue.

What do I do?

My unit is covered by WhiskerCare™
If your Litter-Robot is covered by our WhiskerCare™ warranty, you have access to replacement parts, at no cost, to get your Litter-Robot up-and-running quickly.

1. Simply log in to your account at litter-robot.com
2. Click on ‘My Robots’ to access the parts available for your robot.
3. Select the part you need
4. We’ll ship you the part at no cost, along with detailed instructions.

CLICK HERE TO START THE PROCESS

The warranty on my unit has expired
If your unit is no longer under warranty, we can help you with the necessary parts and instructions to properly fix your unit at home.

Parts Needed (choose one):

• Litter-Robot 4 Globe | Installation Instructions
• Litter-Robot 4 Motor | Installation Instructions

• Litter-Robot 4 Base | Installation Instructions
