Whisker App: Onboarding your Litter-Robot 4

Visit our Getting Started guide for setup directions for your Litter-Robot 4.

Download the Whisker app and follow the onboarding instructions.

Whisker app onboarding requirements:

• Operating system: iOS 13.0 or later or Android 8.0 or later
• Camera permissions: Required in app to scan the QR code
• Network: 2.4GHz WiFi signal with IPv4 or IPv6 addressing (5GHz WiFi signal not supported)

1. Make sure your mobile device's bluetooth is enabled.
2. To start the onboarding process, put the Litter-Robot into setup mode.
   1. Press and hold the Connect button on the control panel for three seconds.

   2. The control panel will turn solid blue with a yellow light on the bottom.

3. Next, open up the Whisker app. You will need to log in or register an account on the app.

   1. You can do this using the email address and password you created when purchasing your Litter-Robot from our website.
   2. If you did not set up an email or password simply select Register to create a login.

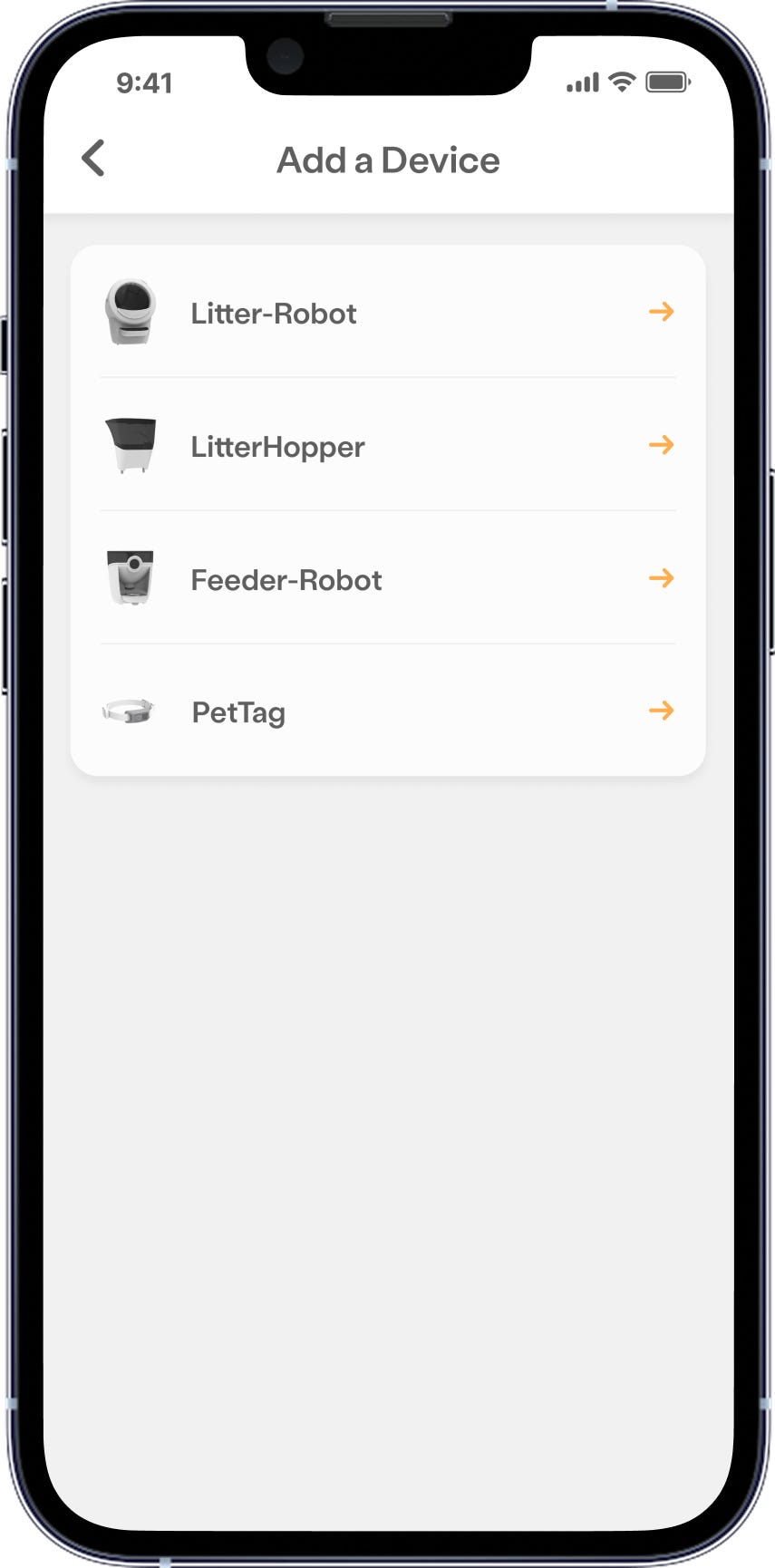

4. Once logged in, tap the plus button to add a new robot.
5. Select the Litter-Robot 4 icon to start the onboarding process.

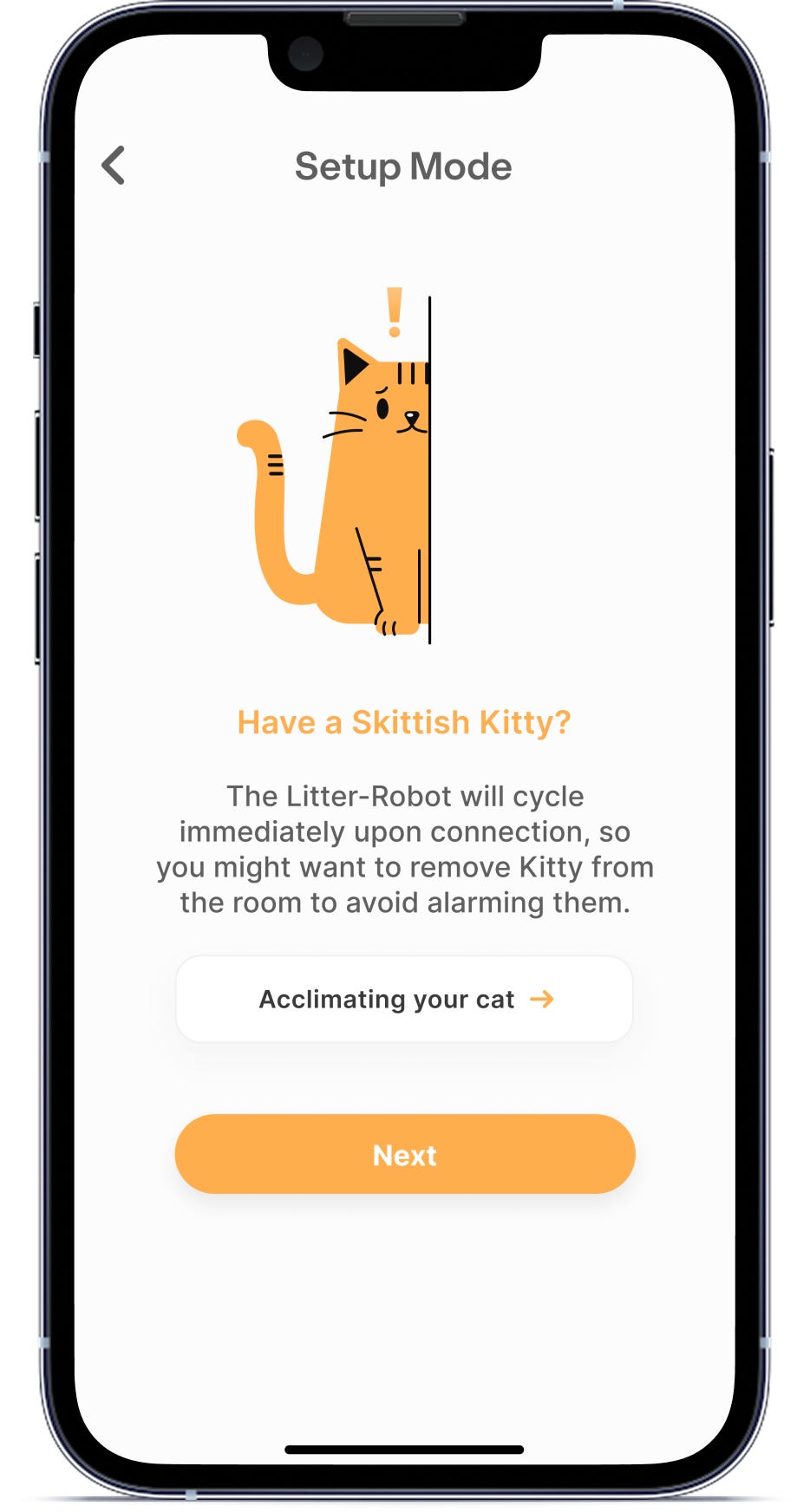

6. Read more about acclimating your cat to Litter-Robot and confirm the Connect light is flashing yellow to continue.

7. Register your robot by scanning the QR code on the back of the unit to link the serial number to your app. It's also located on the box it came in.


   Troubleshooting QR code scanning issues

   Fixing the serial number currently in use error

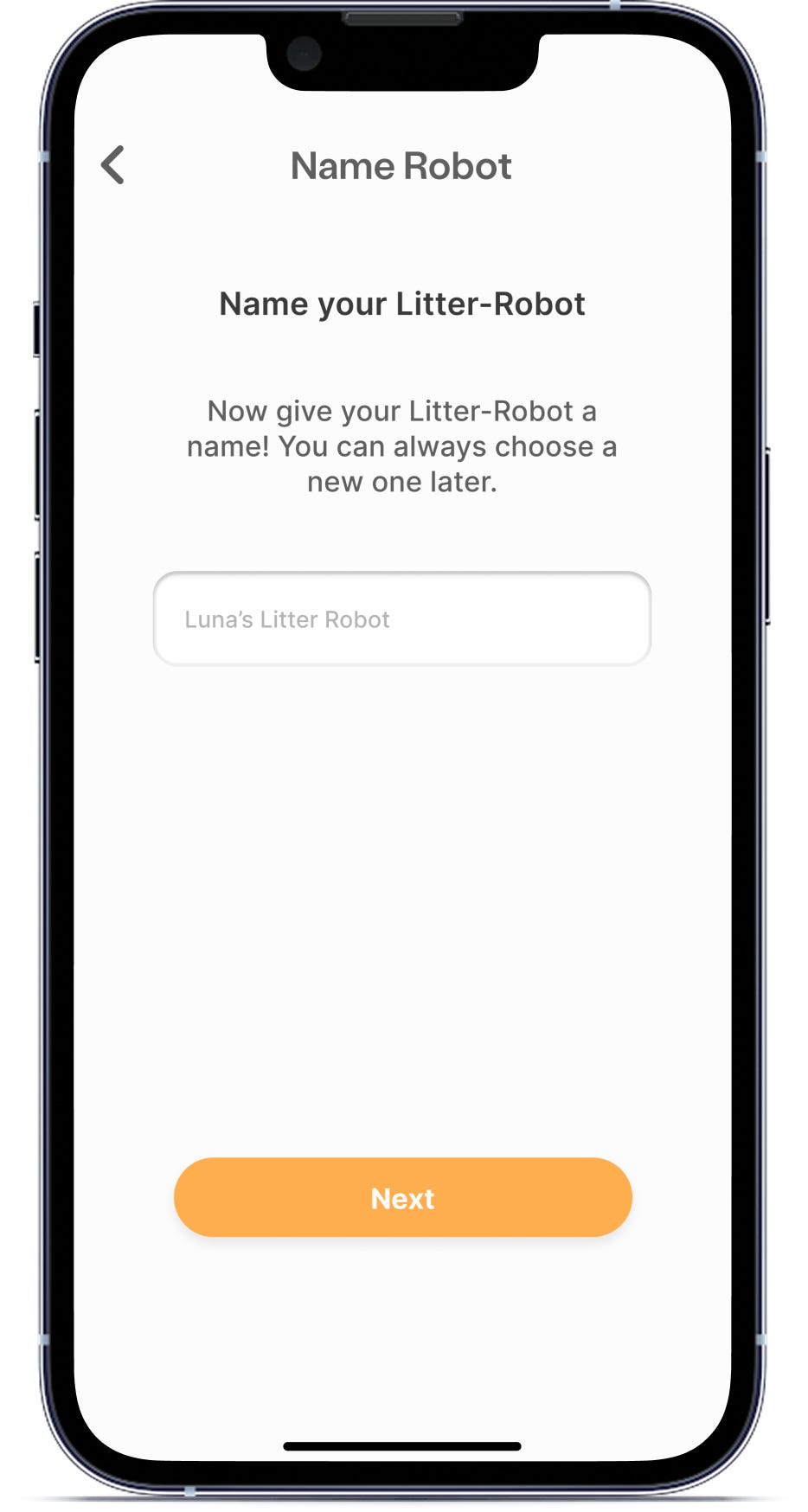

8. Next, it's time to name your Litter-Robot. If you have more than one robot, this will make it easy to identify.

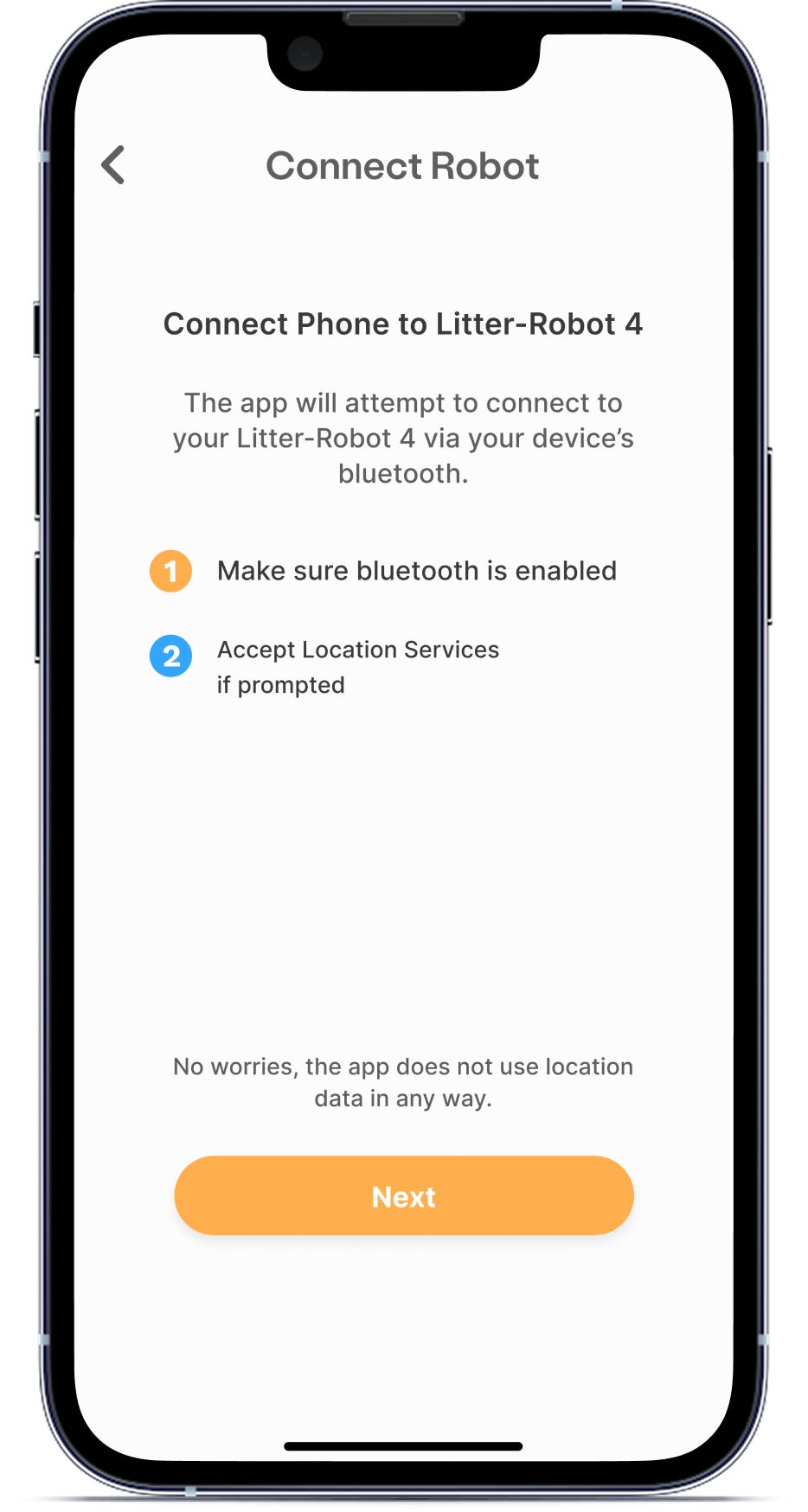

9. Now, connect your phone to the Litter-Robot via your device's bluetooth.

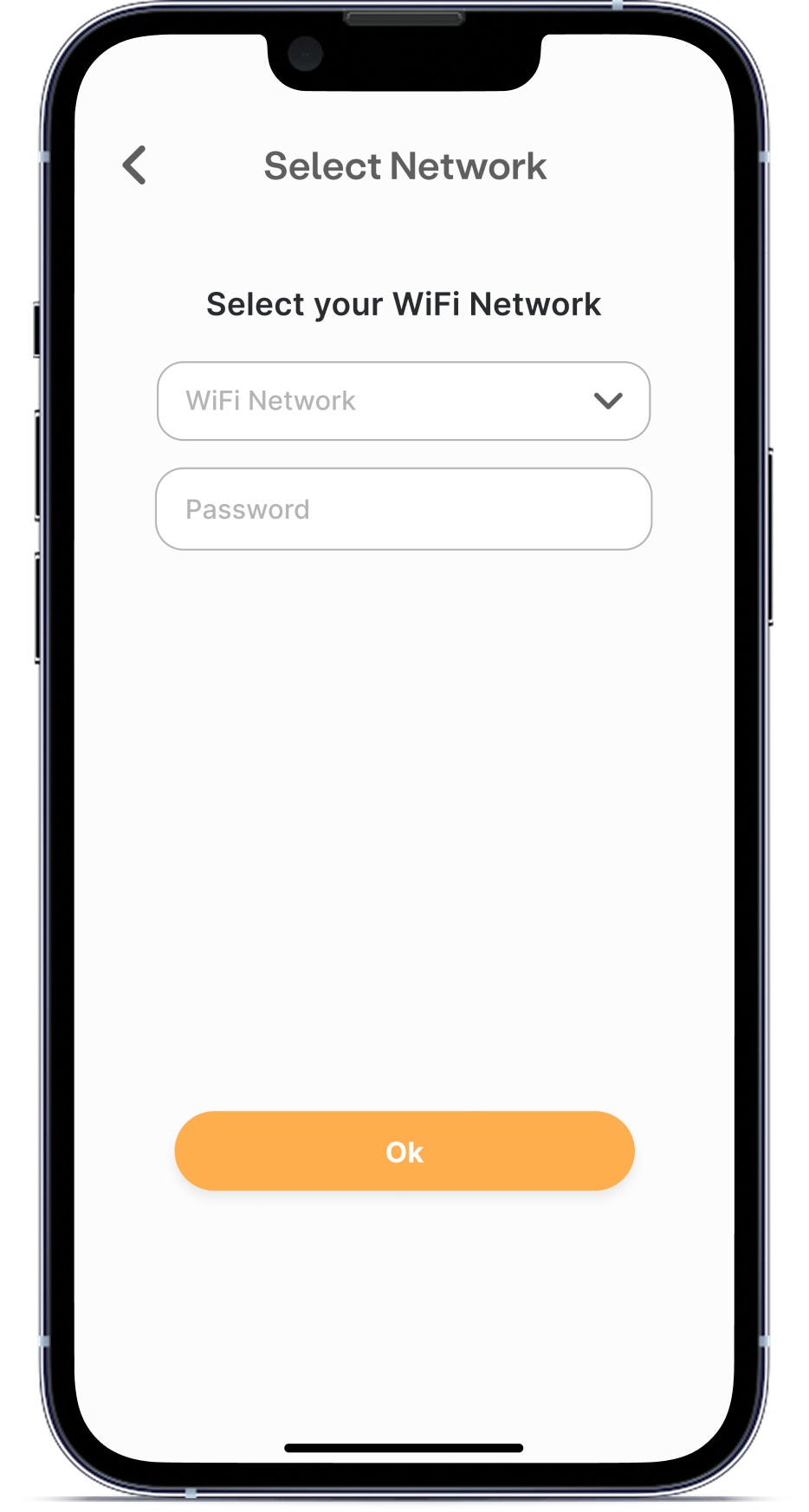

10. Your last step is to select your home WiFi network and enter your password.


    How to resolve WiFi network selection issues

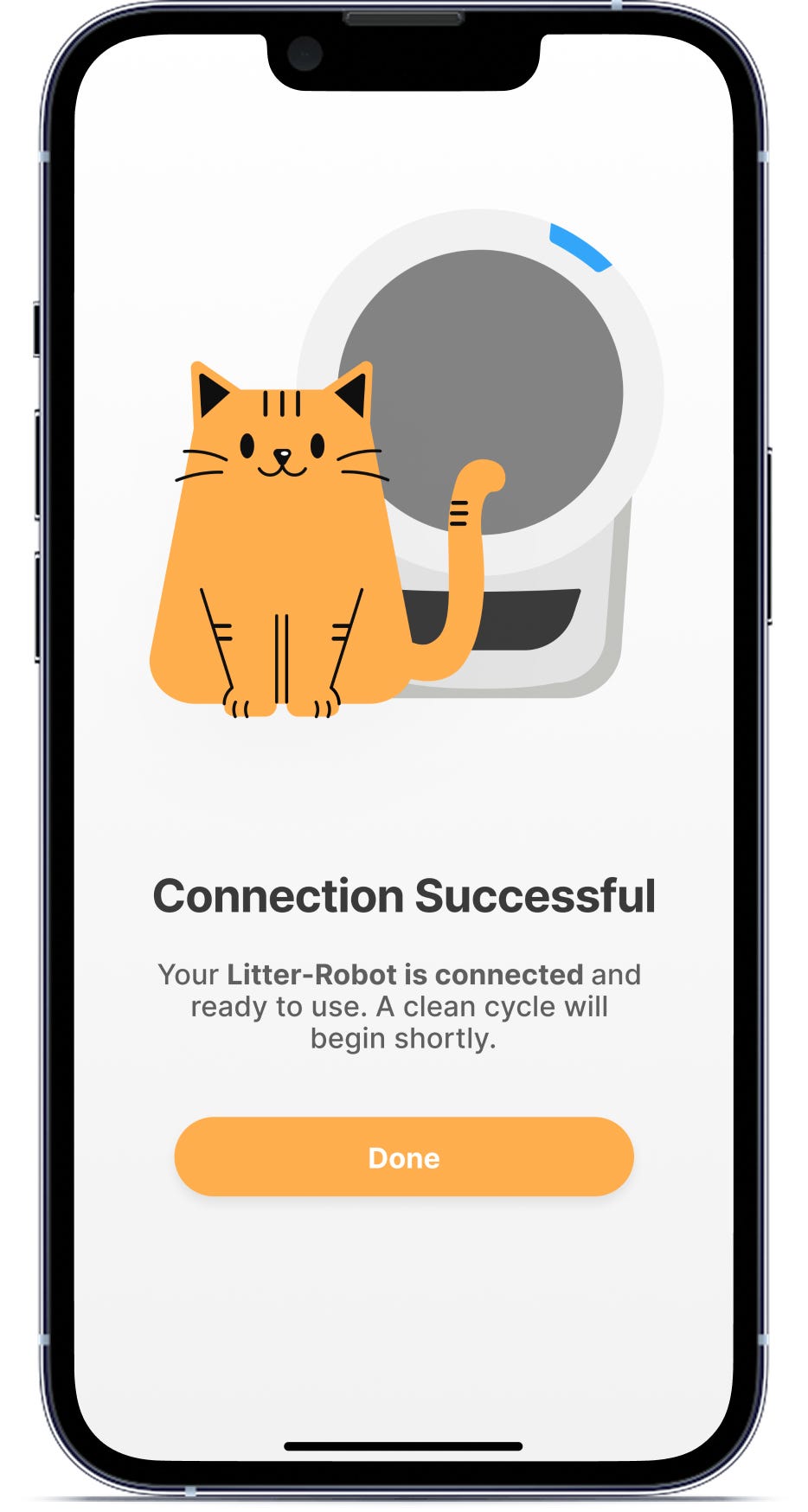

11. Once the Litter-Robot is successfully connected to your WiFi and the process is complete, the control panel will show solid blue.
