Litter-Robot 3 onboarding: Selecting Litter-Robot WiFi hotspot

To onboard your Litter-Robot 3 (serial numbers LR3CI or LR3C if connection via your mobile phone's bluetooth is unsuccessful) in the Whisker App, you will be prompted to connect your phone to Litter-Robot's WiFi hotspot.

Serial numbers LR3CI331028 and below: If onboarding with an Android phone, you must connect via Litter-Robot WiFi instead of your phone's bluetooth.

Serial numbers beginning with LR3C (not LR3CI): You must connect via Litter-Robot WiFi instead of your phone's bluetooth.

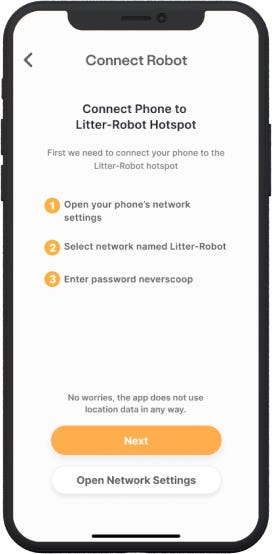

Selecting Litter-Robot WiFi

1. Minimize the Whisker app
2. Open your phone's settings
3. Tap Connections or WiFi
4. Look for Litter-Robot SSID (may need to scroll down)
5. Tap Litter-Robot
6. Input the password neverscoop
7. Allow the device to establish a connection; the WiFi signal should be visible on the top left of the screen
8. Return to the Whisker app
9. Follow the prompts in the app

 If you've exhausted all troubleshooting at the "Connect Robot" onboarding step, go into your phone's list of bluetooth accessories and "Forget" any devices that have "LR3C" or "Espressif" in the name, reboot your phone, and restart the onboarding process

If you see 'Litter-Robot SSID not found':

• Make sure that the Litter-Robot is in onboarding mode. The power button should be illuminated solid blue.
• WiFi must be enabled on your mobile device.
• You must be next to Litter-Robot to ensure your mobile device can see it.

Questions? Visit whiskersupport.com
