Litter-Robot 4: Bonnet installation guide

Replacing the Litter-Robot 4 Bonnet is easy. Follow these steps to remove the old bonnet and quickly install a new one. Note: The globe will not rotate without the bonnet installed.

1. Remove the old bonnet:

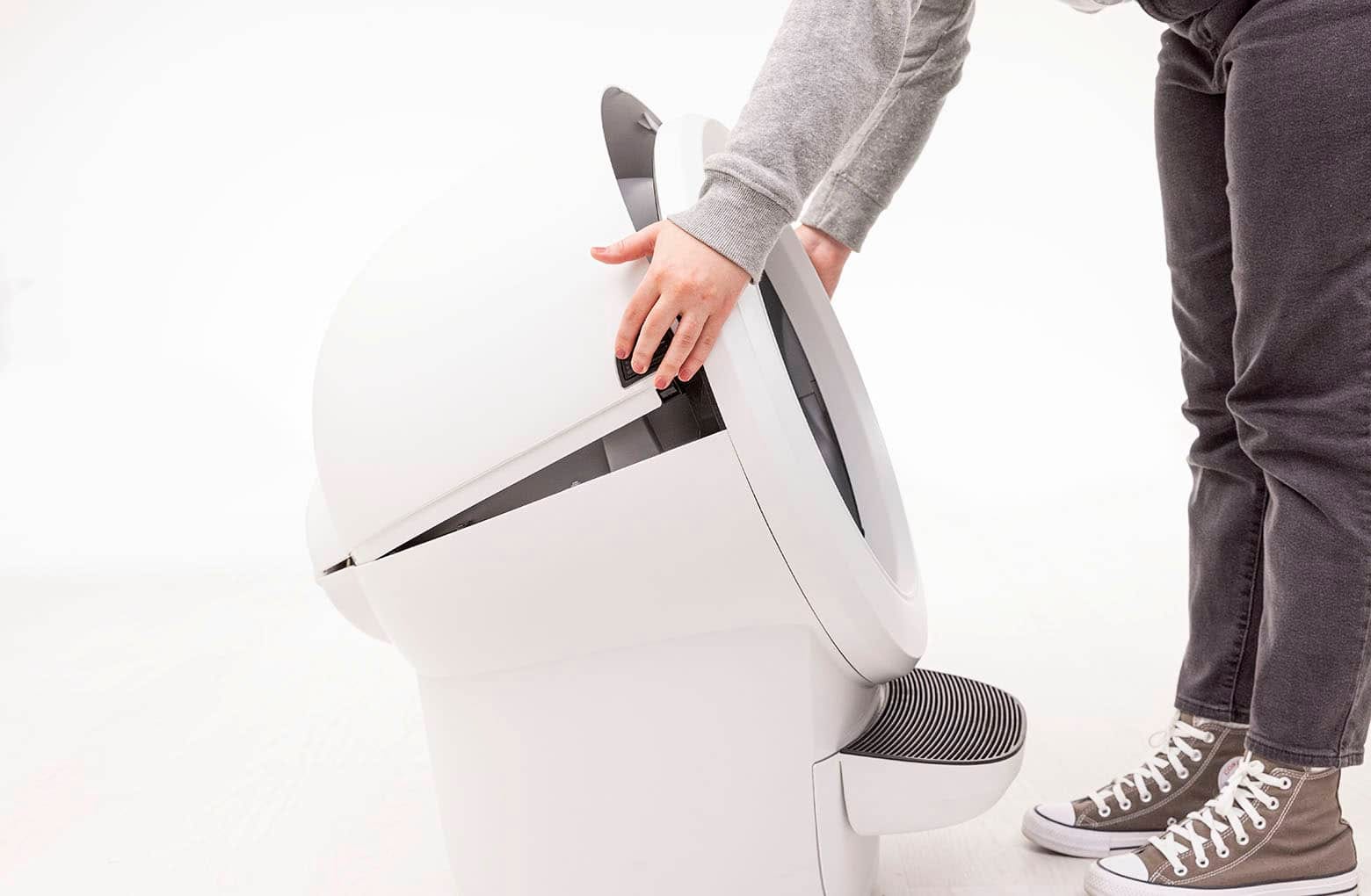

   1. Press and hold the latches on both sides of the bonnet, then lift and rotate the bonnet to its open position.
   2. Unlatch the bonnet, remove, and set aside.

2. Install the new bonnet:

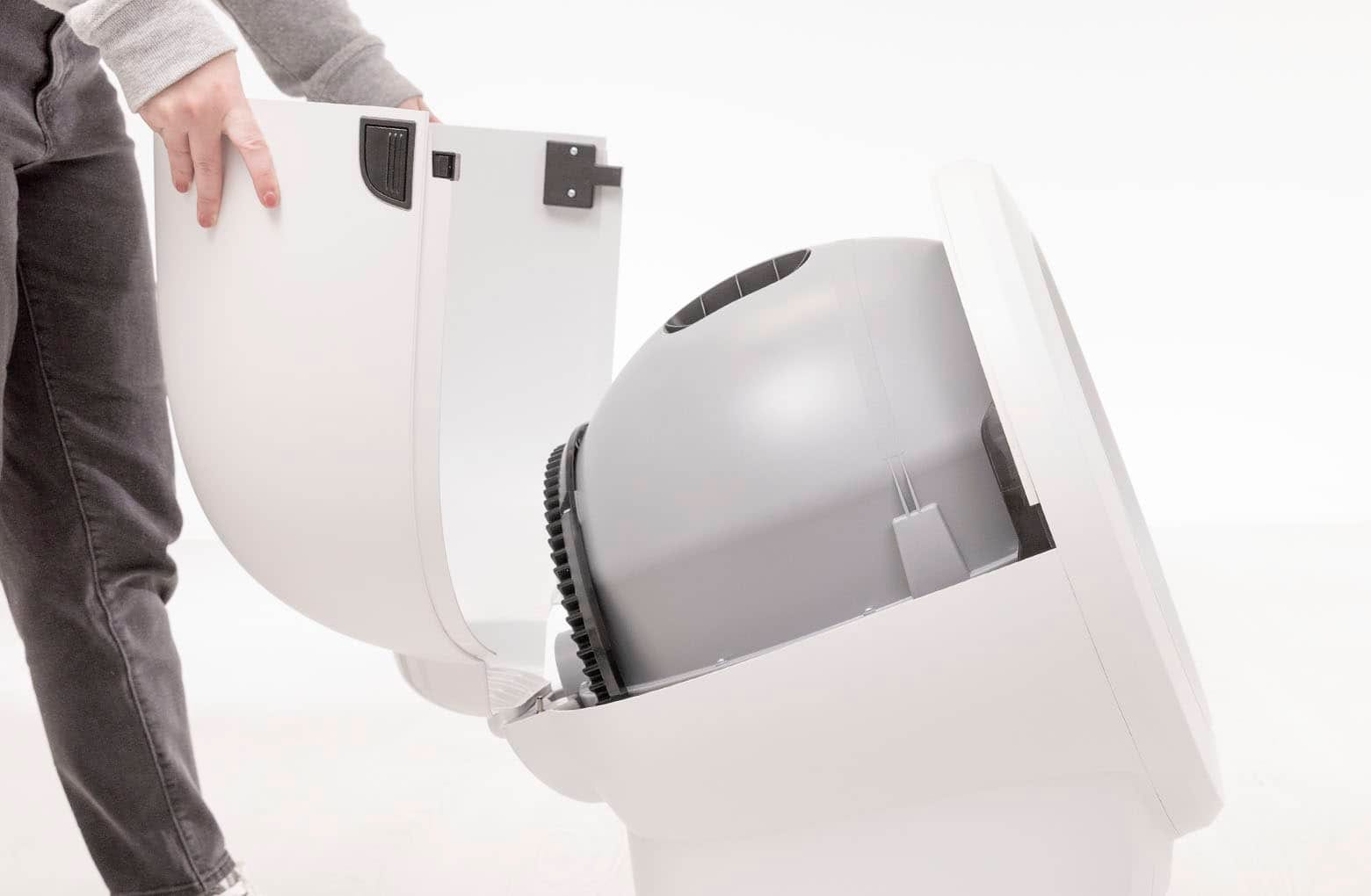

   1. Place the bonnet into the hinge behind the robot as shown.

      b. Rotate the bonnet downward over the globe and push down on the bonnet from the top to make sure it is latched and secure. (An audible “click” will be heard.)

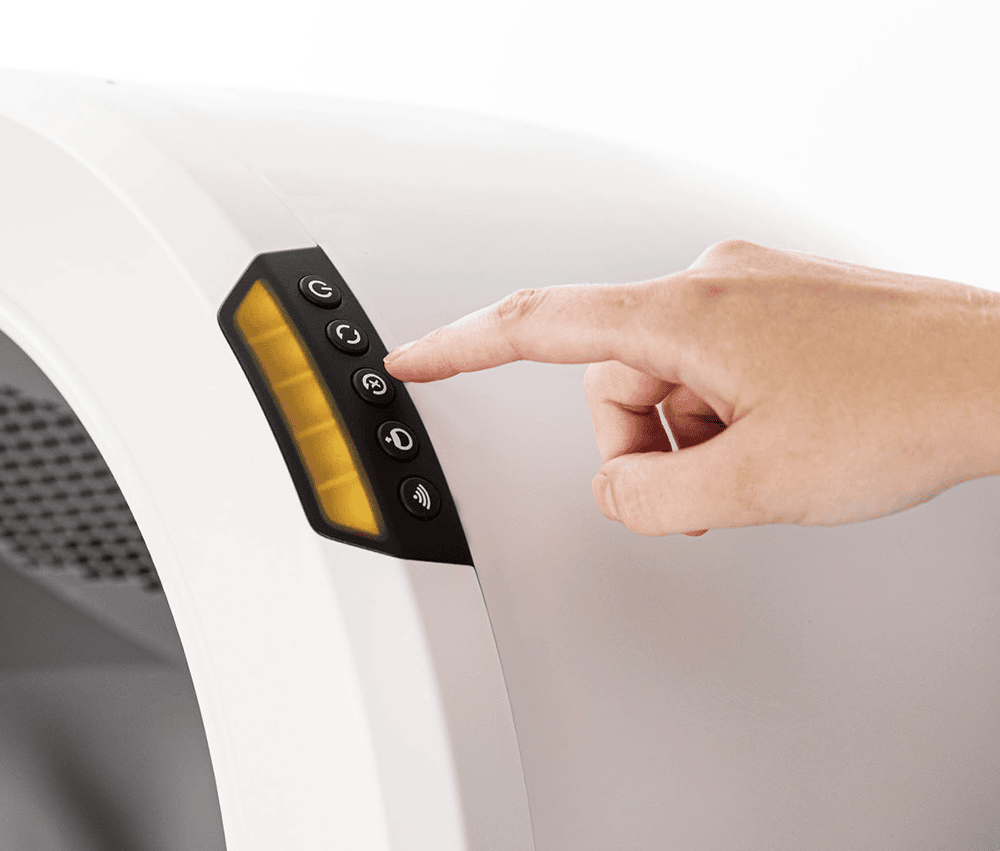

3. Press the Reset button to zero the weight sensors.
