Litter-Robot 4: Waste liner holder installation guide

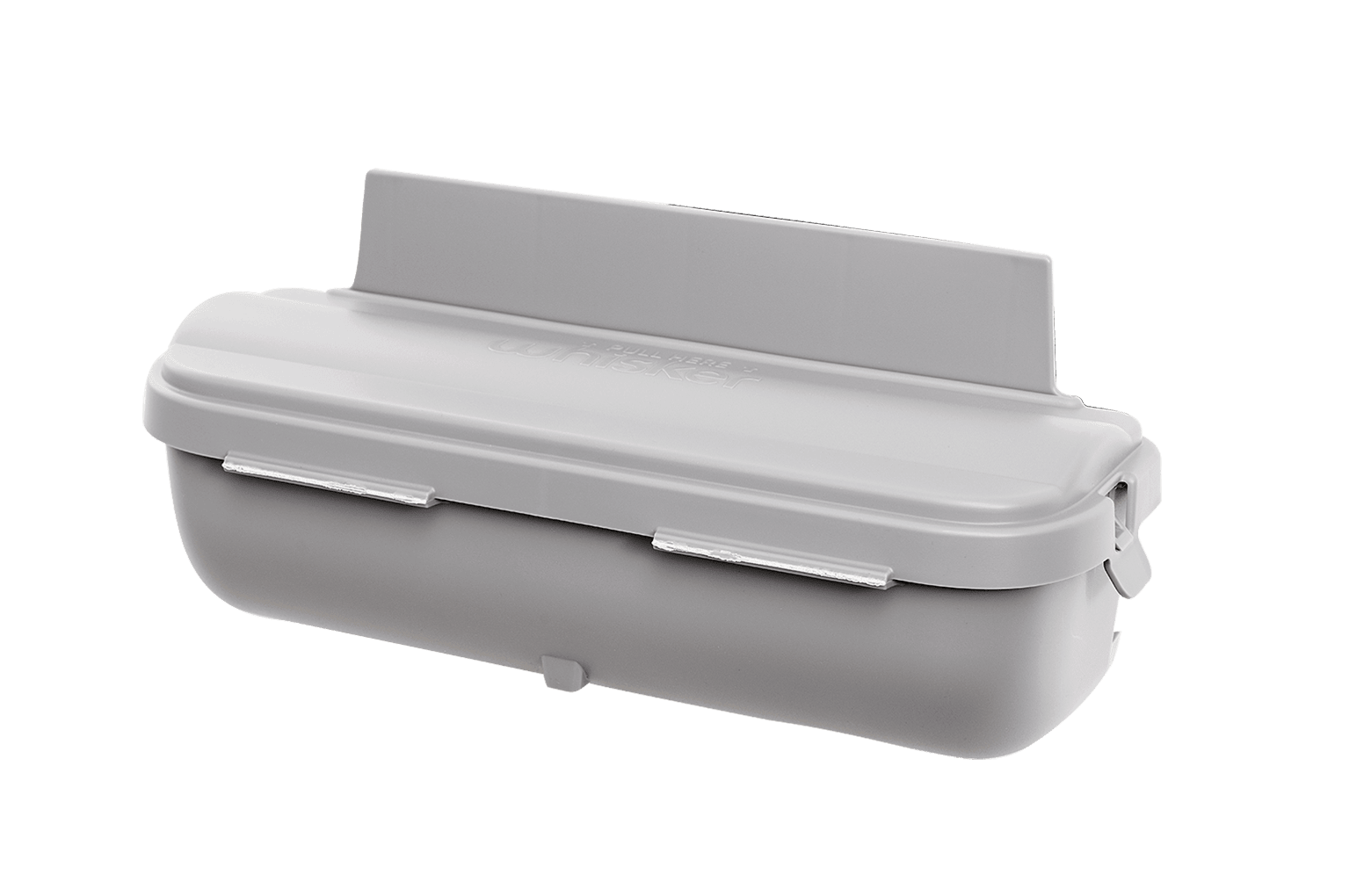

The dispenser attaches inside the back of the Litter-Robot 4 waste drawer and conveniently stores a 25-pack roll of waste drawer liners.

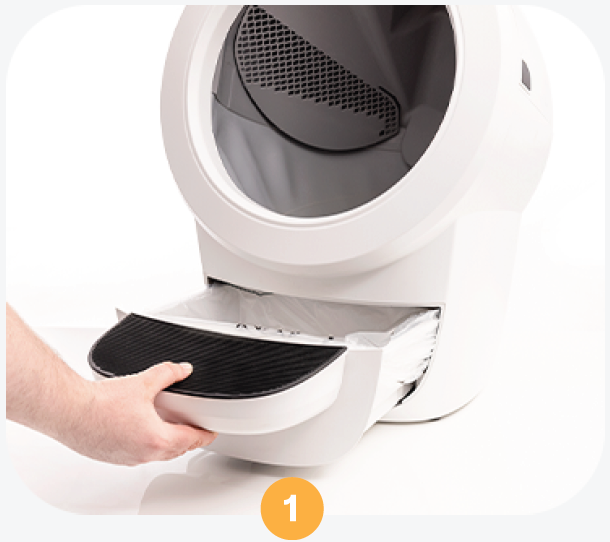

Remove the waste drawer from the Litter-Robot 4 by pulling out the handle/step.

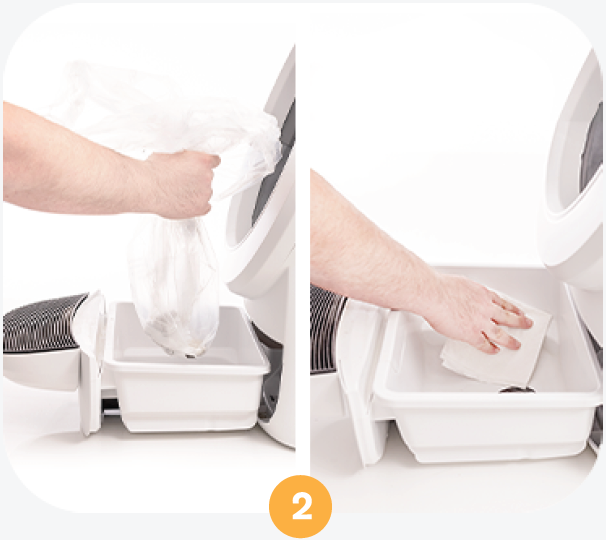

Empty and clean out any waste from the drawer.

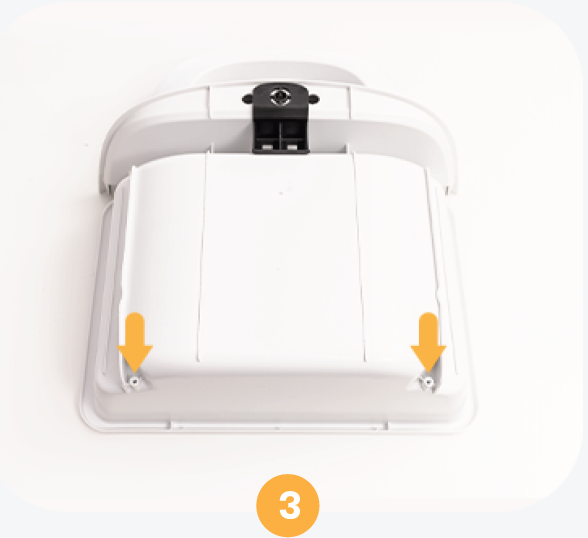

Once emptied, turn the waste drawer upside down and find the 2 screw placements.

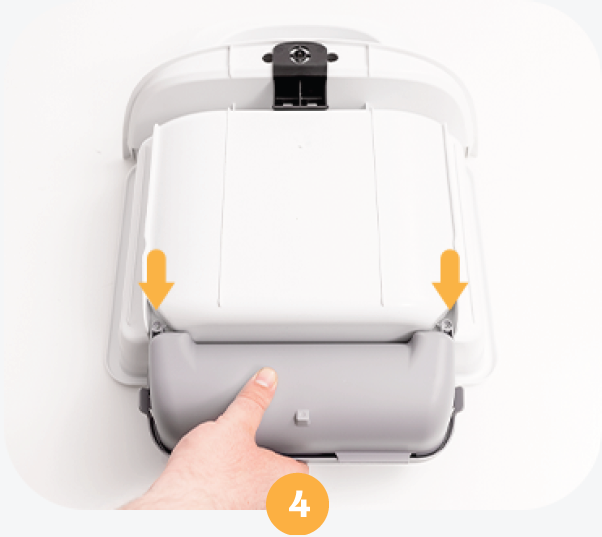

Align the 2 screw holes on the Waste Liner Holder with the 2 screw placements on the drawer.

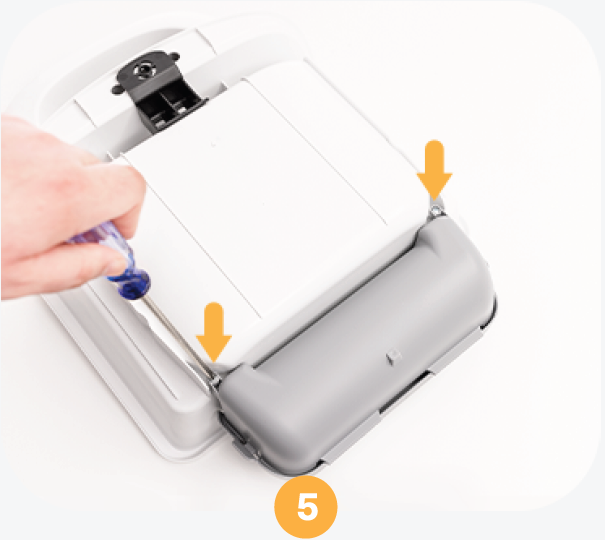

Use a screw driver to install the 2 screws.

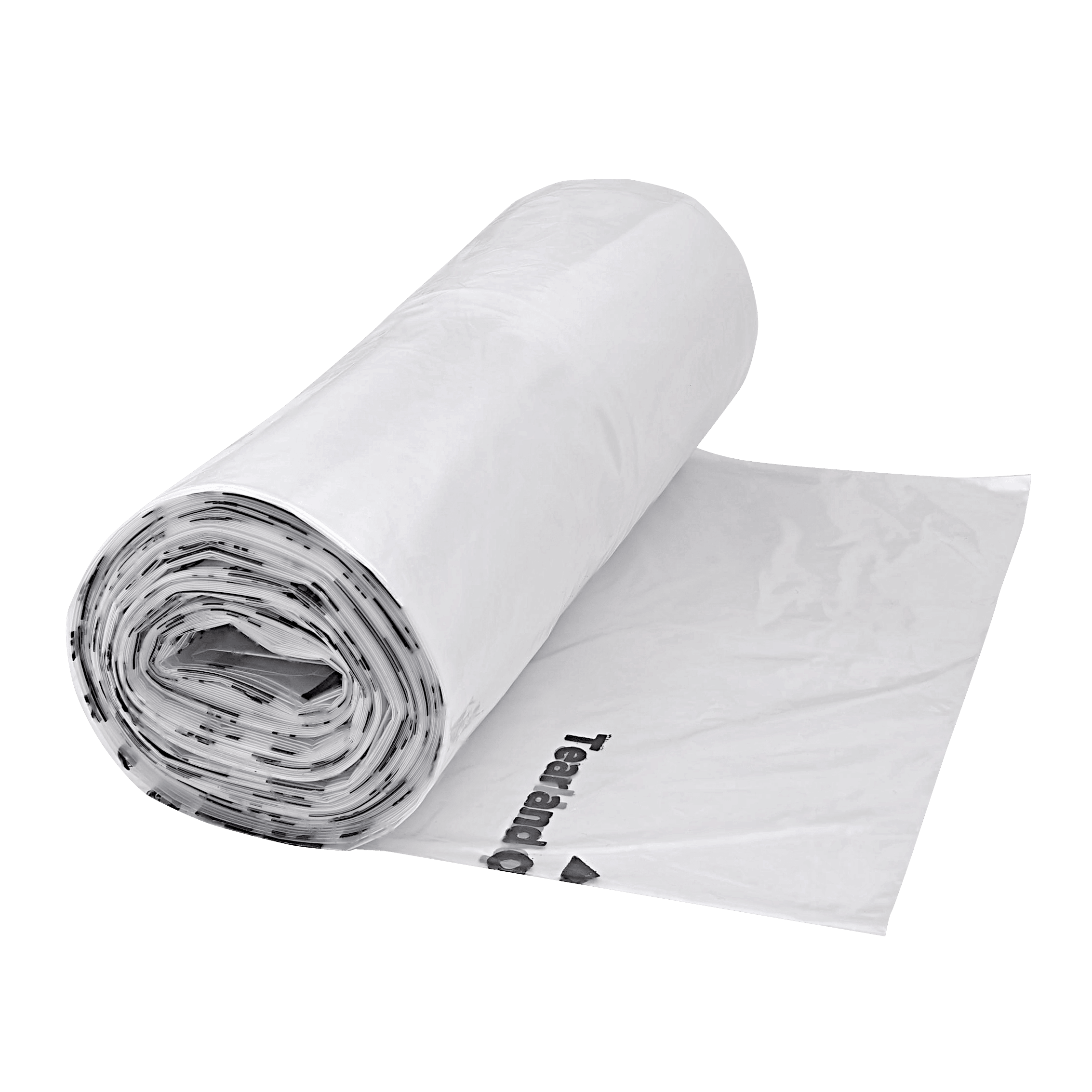

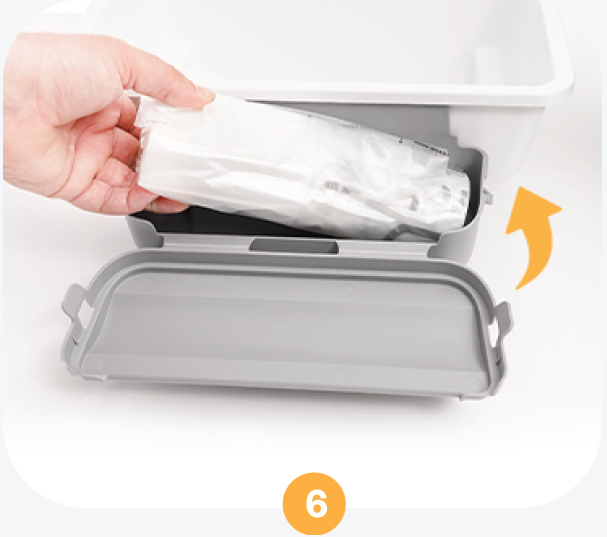

Open the Waste Liner Holder’s lid, add the roll of bags, and close.

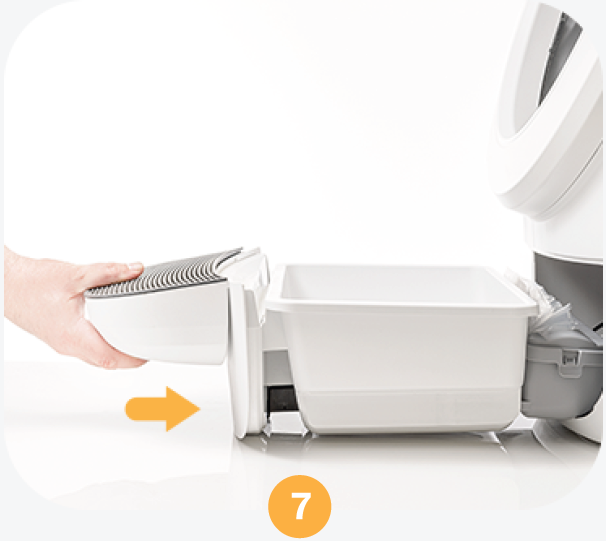

Slide the drawer back into the Litter-Robot 4.

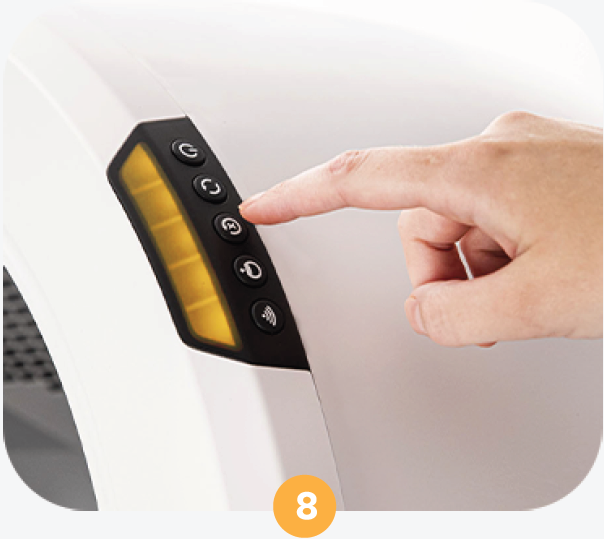

Press the Reset button to recalibrate the scale. The Waste Liner Holder is now ready to use.
